diaedge
MS4ECD0300L35S04
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

331416

ANSI

MS4EC/3X35X4

ISO

MS4ECD0300L35S04

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

22

Regular price $41.73 USD
Regular price Sale price $41.73 USD
Sale

EDP

331416

ANSI

MS4EC/3X35X4

ISO

MS4ECD0300L35S04

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

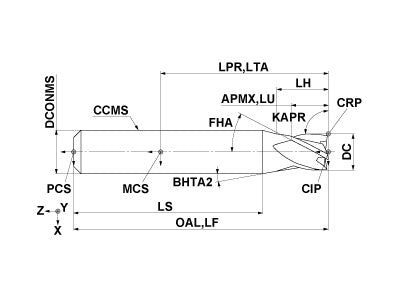

  • Drawings
  • Technical Information
MS4ECD0300L35S04
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
3
LU
3
LH
3.9
OAL
35
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4ECD0300L35S04

Unit: mm

DC
3
APMX
3
LU
3
LH
3.9
OAL
35
DCONMS
4
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
