diaedge
MS4ECD0500L45S06
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

331571

ANSI

MS4EC/5X45X6

ISO

MS4ECD0500L45S06

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

Out of stock

Price
$51.85 USD
$51.85 USD
Sale

EDP

331571

ANSI

MS4EC/5X45X6

ISO

MS4ECD0500L45S06

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

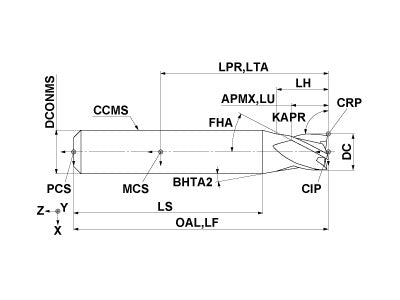

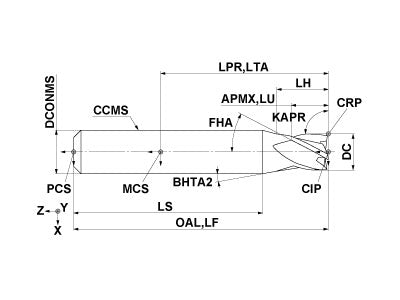

  • Drawings
  • Technical Information
MS4ECD0500L45S06
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
5
LU
5
LH
6.2
OAL
45
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
MS4ECD0500L45S06

Unit: mm

DC
5
APMX
5
LU
5
LH
6.2
OAL
45
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
