diaedge
MSMHZDD0600
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

331871

ANSI

MSMHZD/6

ISO

MSMHZDD0600

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

12

Regular price $91.80 USD
Regular price Sale price $91.80 USD
Sale

EDP

331871

ANSI

MSMHZD/6

ISO

MSMHZDD0600

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

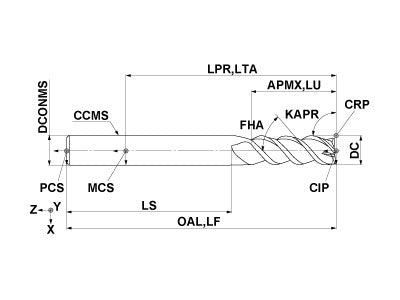

  • Drawings
  • Technical Information
MSMHZDD0600
Coolant
External
Hand
Right

Unit: mm

DC
6
APMX
13
LU
13
LH
13
OAL
60
DCONMS
6
FHA
45
ZEFP
3
ZEFF
3
MSMHZDD0600

Unit: mm

DC
6
APMX
13
LU
13
LH
13
OAL
60
DCONMS
6
FHA
45
ZEFP
3
ZEFF
3
