diaedge
MSMHZDD0850
Skip to product information

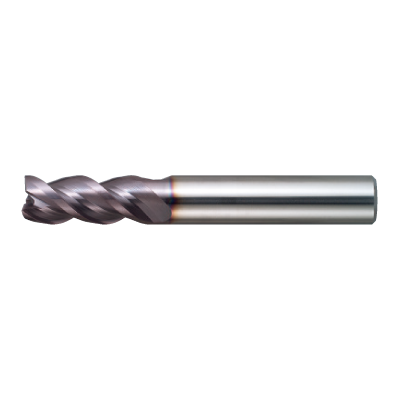

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

331926

ANSI

MSMHZD/8.5

ISO

MSMHZDD0850

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

2

Regular price $159.96 USD
Regular price Sale price $159.96 USD
Sale

EDP

331926

ANSI

MSMHZD/8.5

ISO

MSMHZDD0850

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

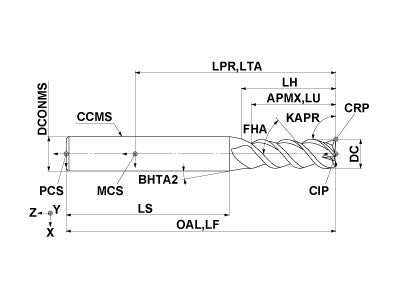

  • Drawings
  • Technical Information
MSMHZDD0850
Coolant
External
Hand
Right

Unit: mm

DC
8.5
APMX
19
LU
19
LH
21.3
OAL
70
DCONMS
10
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
MSMHZDD0850

Unit: mm

DC
8.5
APMX
19
LU
19
LH
21.3
OAL
70
DCONMS
10
BHTA2
15
FHA
45
ZEFP
3
ZEFF
3
