diaedge
MSMHZDD1000
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

331951

ANSI

MSMHZD/10

ISO

MSMHZDD1000

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

6

Regular price $139.14 USD
Regular price Sale price $139.14 USD
Sale

EDP

331951

ANSI

MSMHZD/10

ISO

MSMHZDD1000

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

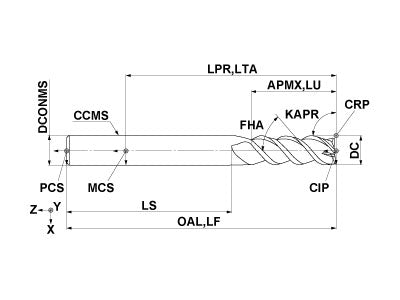

  • Drawings
  • Technical Information
MSMHZDD1000
Coolant
External
Hand
Right

Unit: mm

DC
10
APMX
22
LU
22
LH
22
OAL
80
DCONMS
10
FHA
45
ZEFP
3
ZEFF
3
MSMHZDD1000

Unit: mm

DC
10
APMX
22
LU
22
LH
22
OAL
80
DCONMS
10
FHA
45
ZEFP
3
ZEFF
3
