diaedge
MSE0014SB VP20MF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

333041

ANSI

MSE0014SB VP20MF

ISO

MSE0014SB VP20MF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

142

Regular price $56.58 USD
Regular price Sale price $56.58 USD
Sale

EDP

333041

ANSI

MSE0014SB VP20MF

ISO

MSE0014SB VP20MF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

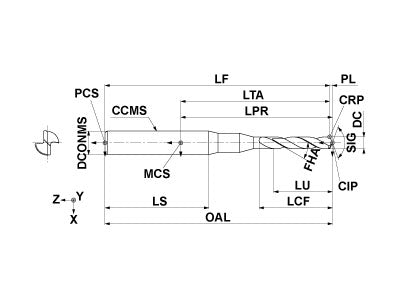

  • Drawings
  • Technical Information
MSE0014SB VP20MF
Coolant
External
Hand
Right

Unit: mm

DC
0.14
LU
0.45
LCF
2.03
OAL
38.03
DCONMS
3
PL
0.03
SIG
130
FHA
35
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
MSE0014SB VP20MF

Unit: mm

DC
0.14
LU
0.45
LCF
2.03
OAL
38.03
DCONMS
3
PL
0.03
SIG
130
FHA
35
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
