diaedge
SCACL-083SM
Skip to product information

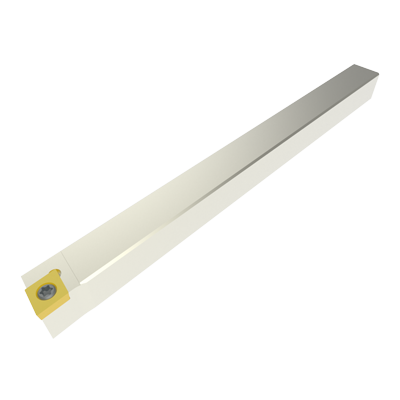

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

337148

ANSI

SCACL-083SM

ISO

SCACL-083SM

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

4

Regular price $113.50 USD
Regular price Sale price $113.50 USD
Sale

EDP

337148

ANSI

SCACL-083SM

ISO

SCACL-083SM

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

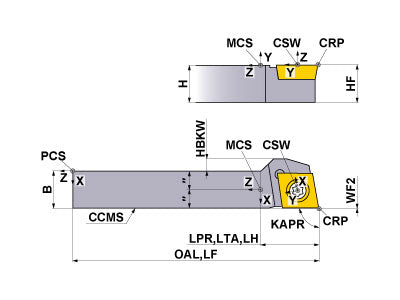

  • Drawings
  • Technical Information
SCACL-083SM
Coolant
External
Hand
Left

Unit: inch

H
0.5
B
0.5
LF
5.906
LH
0.551
HF
0.5
HBKW
0.031
WF2
0
KAPR
90
SCACL-083SM

Unit: inch

H
0.5
B
0.5
LF
5.906
LH
0.551
HF
0.5
HBKW
0.031
WF2
0
KAPR
90

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS43 108744 TS43
inventory mark
$2.74
TKY15R 106902 TKY15R
inventory mark
$3.40
