diaedge
SCACR-063SM
Skip to product information

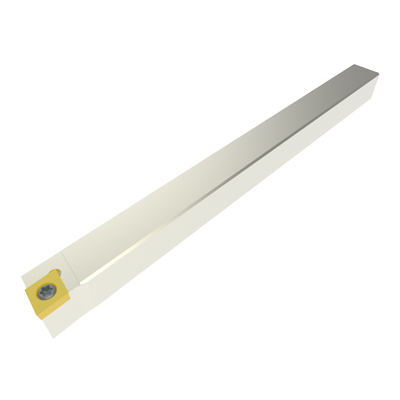

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

337164

ANSI

SCACR-063SM

ISO

SCACR-063SM

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

9

Regular price $113.50 USD
Regular price Sale price $113.50 USD
Sale

EDP

337164

ANSI

SCACR-063SM

ISO

SCACR-063SM

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
SCACR-063SM
Coolant
External
Hand
Right

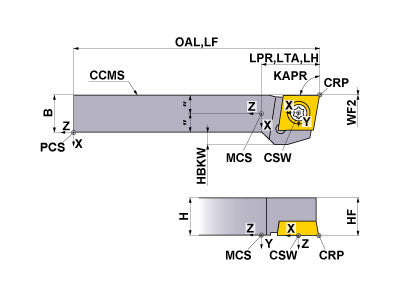

Unit: inch

H
0.375
B
0.375
LF
4.921
LH
0.63
HF
0.375
HBKW
0.156
WF2
0
KAPR
90
SCACR-063SM

Unit: inch

H
0.375
B
0.375
LF
4.921
LH
0.63
HF
0.375
HBKW
0.156
WF2
0
KAPR
90
