diaedge

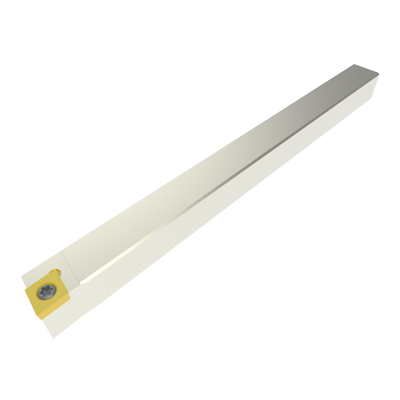

SCACR-083SM
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

337172

ANSI

SCACR-083SM

ISO

SCACR-083SM

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

61

Regular price $122.58 USD
Regular price Sale price $122.58 USD
Sale

EDP

337172

ANSI

SCACR-083SM

ISO

SCACR-083SM

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

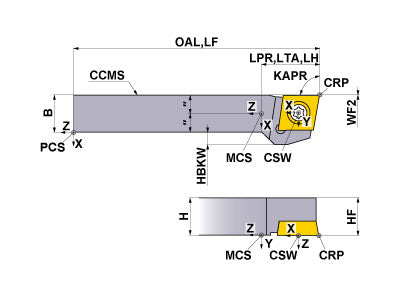

  • Drawings
  • Technical Information
SCACR-083SM
Coolant
External
Hand
Right

Unit: inch

H
0.5
B
0.5
LF
5.906
LH
0.551
HF
0.5
HBKW
0.031
WF2
0
KAPR
90
SCACR-083SM

Unit: inch

H
0.5
B
0.5
LF
5.906
LH
0.551
HF
0.5
HBKW
0.031
WF2
0
KAPR
90
