MSE0085SB VP15TF
print open mailer

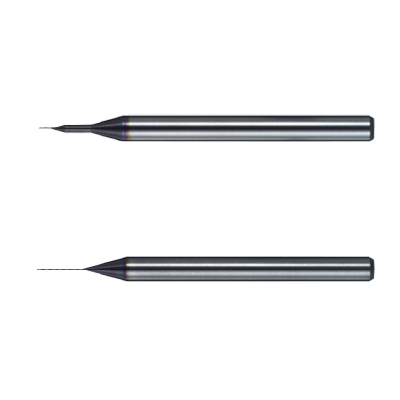

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

338239

ANSI

MSE0085SB VP15TF

ISO

MSE0085SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

Stock
8

Price
$43.42 USD
$43.42 USD
Sale

EDP

338239

ANSI

MSE0085SB VP15TF

ISO

MSE0085SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

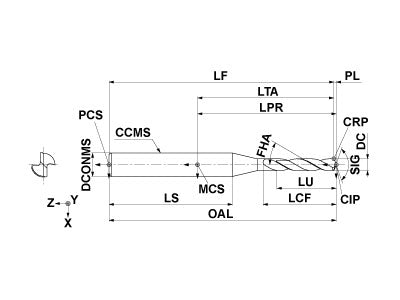

  • Drawings
  • Technical Information
MSE0085SB VP15TF
Coolant
External
Hand
Right

Unit: mm

DC
0.85
LU
2.75
LCF
10.2
OAL
38.2
DCONMS
3
PL
0.2
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
ZEFF
2
MSE0085SB VP15TF

Unit: mm

DC
0.85
LU
2.75
LCF
10.2
OAL
38.2
DCONMS
3
PL
0.2
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
ZEFF
2
