EDP

347311

ANSI

AJXU08R142SA12L

ISO

AJXU08R142SA12L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

33

Regular price $342.73 USD
Regular price Sale price $342.73 USD
Sale

EDP

347311

ANSI

AJXU08R142SA12L

ISO

AJXU08R142SA12L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

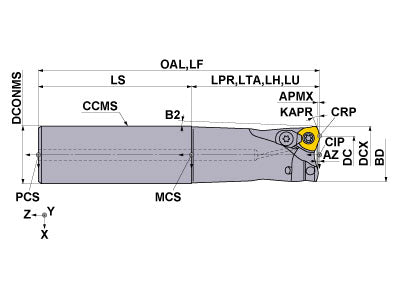

  • Drawings
  • Technical Information
AJXU08R142SA12L
Coolant
Internal
Hand
Right

Unit: inch

DC
0.535
DCX
0.875
LF
7
APMX
0.059
LH
1.25
OAL
7
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.5
RMPX
3
GAMF
-5
GAMP
4
AJXU08R142SA12L

Unit: inch

DC
0.535
DCX
0.875
LF
7
APMX
0.059
LH
1.25
OAL
7
DCONMS
0.75
NOF
2
ZEFF
2
ZEFP
2
KAPR
23.5
RMPX
3
GAMF
-5
GAMP
4

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY08D 106895 TKY08D
inventory mark
$14.00
TS33 242721 TS33
inventory mark
$2.96
