diaedge
AJXU09R182SA16L
Skip to product information

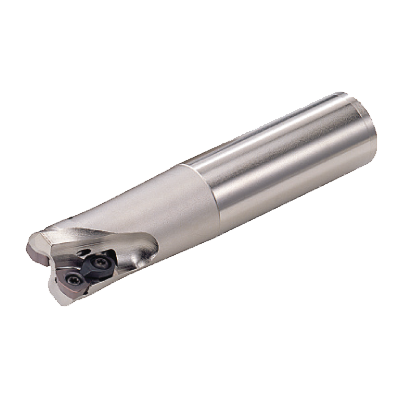

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

347338

ANSI

AJXU09R182SA16L

ISO

AJXU09R182SA16L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

6

Regular price $396.67 USD
Regular price Sale price $396.67 USD
Sale

EDP

347338

ANSI

AJXU09R182SA16L

ISO

AJXU09R182SA16L

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

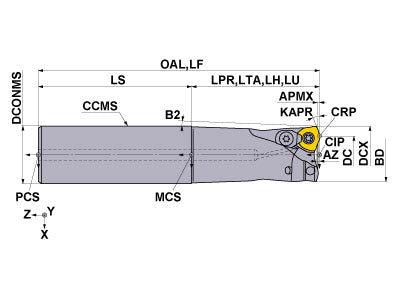

  • Drawings
  • Technical Information
AJXU09R182SA16L
Coolant
Internal
Hand
Right

Unit: inch

DC
0.728
DCX
1.125
LF
8
APMX
0.079
LH
1.625
OAL
8
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
RMPX
3
GAMF
-5
GAMP
5
AJXU09R182SA16L

Unit: inch

DC
0.728
DCX
1.125
LF
8
APMX
0.079
LH
1.625
OAL
8
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
RMPX
3
GAMF
-5
GAMP
5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS351 242237 TS351
inventory mark
$2.74
AJS3010T10 242270 AJS3010T10
inventory mark
$2.74
TKY10D 242261 TKY10D
inventory mark
$14.00
AMS3 242245 AMS3
inventory mark
$8.79
ASS2 242253 ASS2
inventory mark
$0.73
