diaedge
AJXU14R2503C
Skip to product information

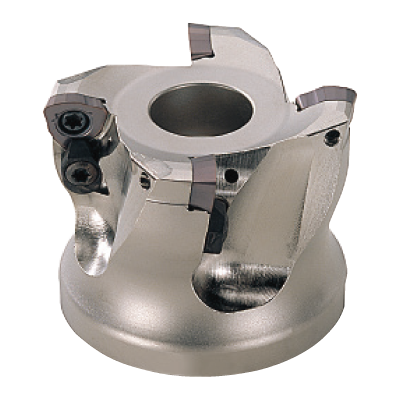

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

347346

ANSI

AJXU14R2503C

ISO

AJXU14R2503C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

6

Regular price $636.97 USD
Regular price Sale price $636.97 USD
Sale

EDP

347346

ANSI

AJXU14R2503C

ISO

AJXU14R2503C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

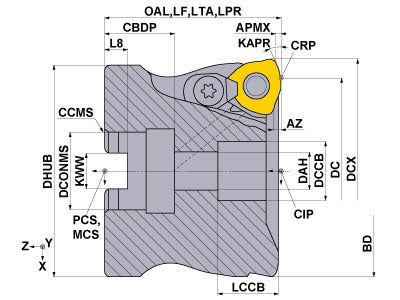

  • Drawings
  • Technical Information
AJXU14R2503C
Coolant
Internal
Hand
Right

Unit: inch

DC
2.032
DCX
2.5
LF
2
APMX
0.079
OAL
2
DCONMS
1
DCSFMS
2.375
NOF
3
ZEFF
3
ZEFP
3
KAPR
22
RMPX
2.8
GAMF
-3
GAMP
8
WT
1.9
AJXU14R2503C

Unit: inch

DC
2.032
DCX
2.5
LF
2
APMX
0.079
OAL
2
DCONMS
1
DCSFMS
2.375
NOF
3
ZEFF
3
ZEFP
3
KAPR
22
RMPX
2.8
GAMF
-3
GAMP
8
WT
1.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
AMS5 100092 AMS5
inventory mark
$9.63
AJS5014T25 242296 AJS5014T25
inventory mark
$2.96
TS54 135001 TS54
inventory mark
$3.97
HSCU50014H 243707 HSCU50014H
inventory mark
$27.55
TKY25T 106908 TKY25T
inventory mark
$4.47
ASS3 100112 ASS3
inventory mark
$0.79
