diaedge
MWS00420XB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

348306

ANSI

MWS00420XB VP15TF

ISO

MWS00420XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

43

Regular price $170.02 USD
Regular price Sale price $170.02 USD
Sale

EDP

348306

ANSI

MWS00420XB VP15TF

ISO

MWS00420XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

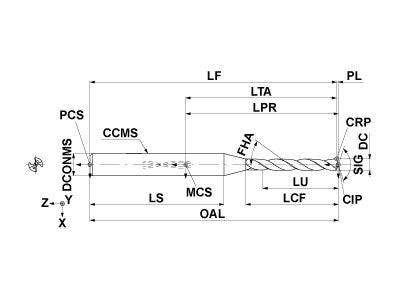

  • Drawings
  • Technical Information
MWS00420XB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.042
ULDR
12.0
LU
0.513
LCF
0.914
OAL
2.174
DCONMS
0.125
PL
0.009
SIG
135
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
MWS00420XB VP15TF

Unit: inch

DC
0.042
ULDR
12.0
LU
0.513
LCF
0.914
OAL
2.174
DCONMS
0.125
PL
0.009
SIG
135
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
