EDP

348461

ANSI

MWS00938XB VP15TF

ISO

MWS00938XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

261

Regular price $170.02 USD
Regular price Sale price $170.02 USD
Sale

EDP

348461

ANSI

MWS00938XB VP15TF

ISO

MWS00938XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

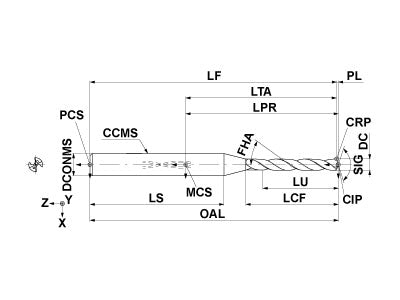

  • Drawings
  • Technical Information
MWS00938XB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.0938
ULDR
12.0
LU
1.143
LCF
1.513
OAL
2.93
DCONMS
0.125
PL
0.017
SIG
140
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
MWS00938XB VP15TF

Unit: inch

DC
0.0938
ULDR
12.0
LU
1.143
LCF
1.513
OAL
2.93
DCONMS
0.125
PL
0.017
SIG
140
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
