EDP

348470

ANSI

MWS01010XB VP15TF

ISO

MWS01010XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

130

Regular price $170.02 USD
Regular price Sale price $170.02 USD
Sale

EDP

348470

ANSI

MWS01010XB VP15TF

ISO

MWS01010XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

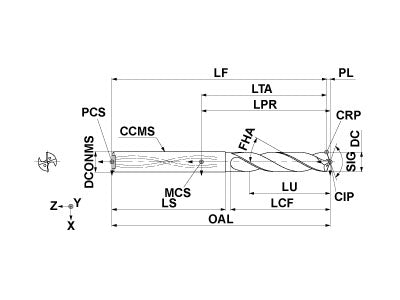

  • Drawings
  • Technical Information
MWS01010XB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.101
ULDR
12.0
LU
1.23
LCF
1.79
OAL
3.207
DCONMS
0.125
PL
0.018
SIG
140
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
MWS01010XB VP15TF

Unit: inch

DC
0.101
ULDR
12.0
LU
1.23
LCF
1.79
OAL
3.207
DCONMS
0.125
PL
0.018
SIG
140
FHA
30
DC Max
0.0006
DC Min
0
TCDCON
h6
ZEFF
2
