diaedge
MWS0270XB VP15TF
Skip to product information
Skip to product information
1 of 0

EDP

348701

ANSI

MWS0270XB VP15TF

ISO

MWS0270XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

122

Regular price $170.02 USD
Regular price Sale price $170.02 USD
Sale

EDP

348701

ANSI

MWS0270XB VP15TF

ISO

MWS0270XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

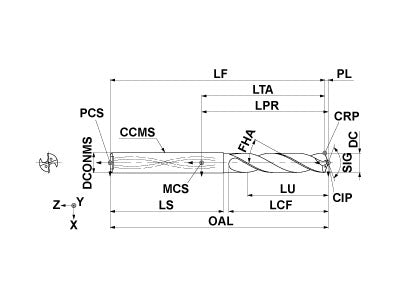

  • Drawings
  • Technical Information
No image
Coolant
Internal
Hand
Right

Unit: mm

DC
2.7
ULDR
12
LU
32.89
LCF
45.5
OAL
81.5
DCONMS
3
PL
0.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2

Unit: mm

DC
2.7
ULDR
12
LU
32.89
LCF
45.5
OAL
81.5
DCONMS
3
PL
0.5
SIG
140
FHA
30
DC Max
0
DC Min
-0.014
TCDCON
h6
ZEFF
2
