diaedge
MSE0065SB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

350211

ANSI

MSE0065SB VP15TF

ISO

MSE0065SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

6

Regular price $40.20 USD
Regular price Sale price $40.20 USD
Sale

EDP

350211

ANSI

MSE0065SB VP15TF

ISO

MSE0065SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

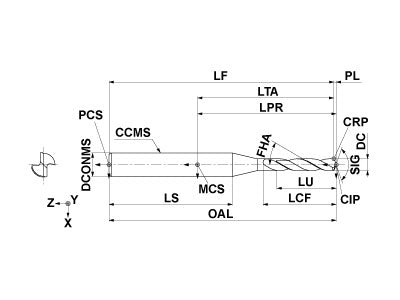

  • Drawings
  • Technical Information
MSE0065SB VP15TF
Coolant
External
Hand
Right

Unit: mm

DC
0.65
LU
2.1
LCF
7.15
OAL
38.15
DCONMS
3
PL
0.15
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
MSE0065SB VP15TF

Unit: mm

DC
0.65
LU
2.1
LCF
7.15
OAL
38.15
DCONMS
3
PL
0.15
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
