diaedge
MSE0086SB VP15TF
Skip to product information

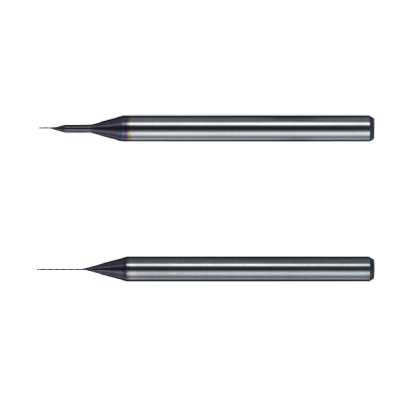

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

350377

ANSI

MSE0086SB VP15TF

ISO

MSE0086SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

5

Regular price $43.42 USD
Regular price Sale price $43.42 USD
Sale

EDP

350377

ANSI

MSE0086SB VP15TF

ISO

MSE0086SB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

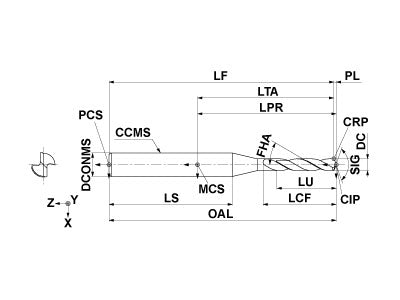

  • Drawings
  • Technical Information
MSE0086SB VP15TF
Coolant
External
Hand
Right

Unit: mm

DC
0.86
LU
2.78
LCF
10.2
OAL
38.2
DCONMS
3
PL
0.2
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
MSE0086SB VP15TF

Unit: mm

DC
0.86
LU
2.78
LCF
10.2
OAL
38.2
DCONMS
3
PL
0.2
SIG
130
FHA
30
DC Max
0
DC Min
-0.009
TCDCON
h6
ZEFF
2
