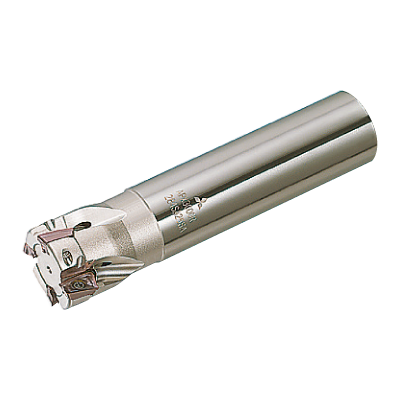

APX3000UR081SA08SB
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

351281

ANSI

APX3000UR081SA08SB

ISO

APX3000UR081SA08SB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
20

Price
$226.20 USD
$226.20 USD
Sale

EDP

351281

ANSI

APX3000UR081SA08SB

ISO

APX3000UR081SA08SB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

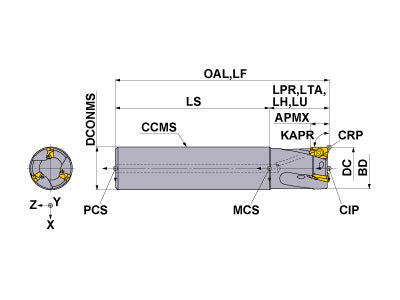

  • Drawings
APX3000UR081SA08SB
Coolant
Internal
Hand
Right

Unit: mm

DC
12.7
LF
82.55
APMX
10
LH
28.45
OAL
82.55
DCONMS
12.7
NOF
1
ZEFF
1
ZEFP
1
KAPR
90
RMPX
6
GAMF
15
GAMP
9
WT
0.132
APX3000UR081SA08SB

Unit: mm

DC
12.7
LF
82.55
APMX
10
LH
28.45
OAL
82.55
DCONMS
12.7
NOF
1
ZEFF
1
ZEFP
1
KAPR
90
RMPX
6
GAMF
15
GAMP
9
WT
0.132


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS25 291581 TPS25
inventory mark
$3.36
TIP07F 291573 TIP07F
inventory mark
$7.61
