APX3000UR122SA12LB
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

351441

ANSI

APX3000UR122SA12LB

ISO

APX3000UR122SA12LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
22

Price
$321.73 USD
$321.73 USD
Sale

EDP

351441

ANSI

APX3000UR122SA12LB

ISO

APX3000UR122SA12LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

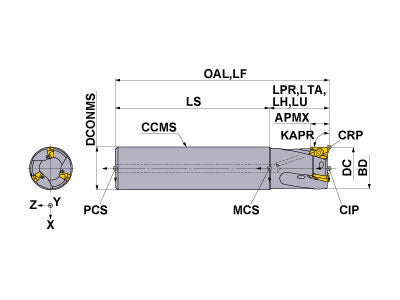

  • Drawings
APX3000UR122SA12LB
Coolant
Internal
Hand
Right

Unit: mm

DC
19.05
LF
184.15
APMX
10
LH
35.05
OAL
184.15
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
7.5
GAMF
23
GAMP
16
WT
0.816
APX3000UR122SA12LB

Unit: mm

DC
19.05
LF
184.15
APMX
10
LH
35.05
OAL
184.15
DCONMS
19.05
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
7.5
GAMF
23
GAMP
16
WT
0.816


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS25 291581 TPS25
inventory mark
$3.36
