APX3000UR162SA16LB
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

351450

ANSI

APX3000UR162SA16LB

ISO

APX3000UR162SA16LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
20

Price
$368.80 USD
$368.80 USD
Sale

EDP

351450

ANSI

APX3000UR162SA16LB

ISO

APX3000UR162SA16LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

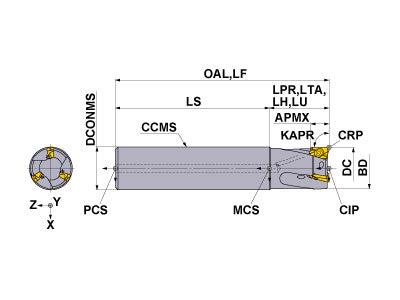

  • Drawings
APX3000UR162SA16LB
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
8.5
APMX
0.394
LH
1.57
OAL
8.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
1.720
APX3000UR162SA16LB

Unit: inch

DC
1
LF
8.5
APMX
0.394
LH
1.57
OAL
8.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
4.5
GAMF
24
GAMP
18
WT
1.720


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP07F 291573 TIP07F
inventory mark
$6.28
MK1KS 291805 MK1KS
inventory mark
$4.79
TPS25-1 291590 TPS25-1
inventory mark
$3.36
