APX3000UR203SA20LB
print open mailer

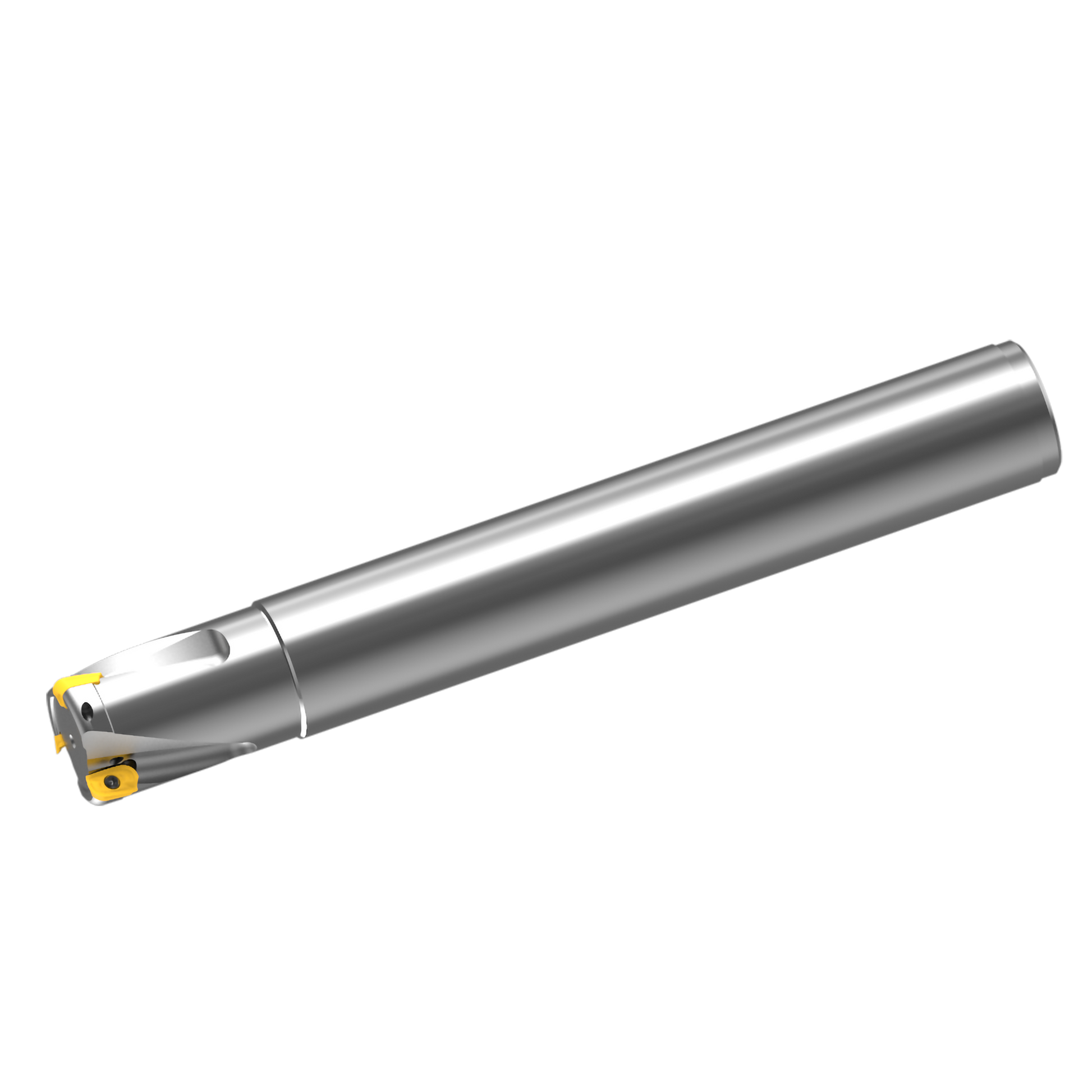

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

351476

ANSI

APX3000UR203SA20LB

ISO

APX3000UR203SA20LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
12

Price
$399.20 USD
$399.20 USD
Sale

EDP

351476

ANSI

APX3000UR203SA20LB

ISO

APX3000UR203SA20LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

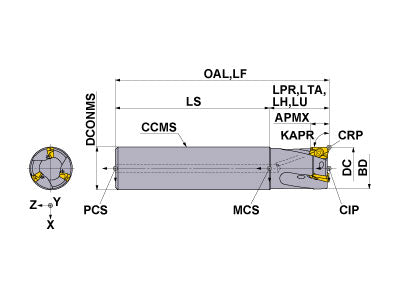

  • Drawings
APX3000UR203SA20LB
Coolant
Internal
Hand
Right

Unit: mm

DC
31.75
LF
228.6
APMX
10
LH
50.038
OAL
228.6
DCONMS
31.75
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
2.844
APX3000UR203SA20LB

Unit: mm

DC
31.75
LF
228.6
APMX
10
LH
50.038
OAL
228.6
DCONMS
31.75
NOF
3
ZEFF
3
ZEFP
3
KAPR
90
RMPX
3.1
GAMF
25
GAMP
20
WT
2.844


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS25-1 291590 TPS25-1
inventory mark
$3.36
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
