APX3000UR244SA20LB
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

351505

ANSI

APX3000UR244SA20LB

ISO

APX3000UR244SA20LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
6

Price
$500.35 USD
$500.35 USD
Sale

EDP

351505

ANSI

APX3000UR244SA20LB

ISO

APX3000UR244SA20LB

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

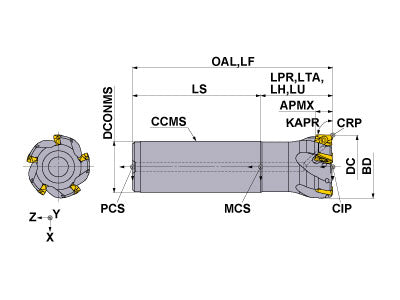

  • Drawings
APX3000UR244SA20LB
Coolant
Internal
Hand
Right

Unit: mm

DC
38.1
LF
228.6
APMX
10
LH
50.038
OAL
228.6
DCONMS
31.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
2.3
GAMF
26
GAMP
22
WT
2.976
APX3000UR244SA20LB

Unit: mm

DC
38.1
LF
228.6
APMX
10
LH
50.038
OAL
228.6
DCONMS
31.75
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
2.3
GAMF
26
GAMP
22
WT
2.976


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS25-1 291590 TPS25-1
inventory mark
$3.36
TIP07F 291573 TIP07F
inventory mark
$7.61
MK1KS 291805 MK1KS
inventory mark
$4.79
