APX3000R2506B
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

351548

ANSI

APX3000R2506B

ISO

APX3000R2506B

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
16

Price
$810.83 USD
$810.83 USD
Sale

EDP

351548

ANSI

APX3000R2506B

ISO

APX3000R2506B

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

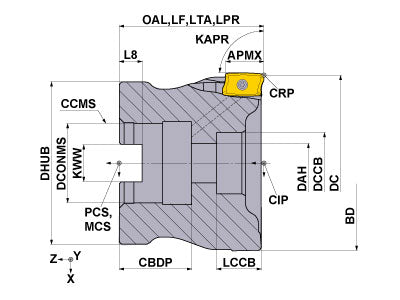

  • Drawings

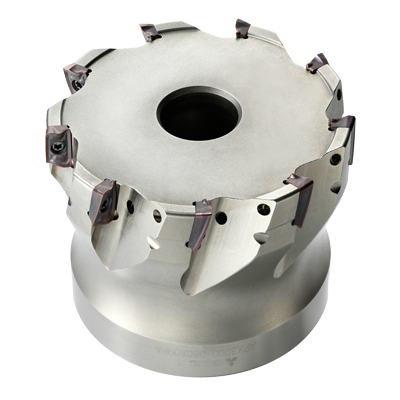

APX3000R2506B
Coolant
Internal
Hand
Right

Unit: mm

DC
63.5
LF
50
APMX
10
OAL
50
DCONMS
25.4
DCSFMS
59.944
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
1.3
GAMF
27
GAMP
22
WT
1.698
APX3000R2506B

Unit: mm

DC
63.5
LF
50
APMX
10
OAL
50
DCONMS
25.4
DCSFMS
59.944
NOF
6
ZEFF
6
ZEFP
6
KAPR
90
RMPX
1.3
GAMF
27
GAMP
22
WT
1.698


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
HSCU50014H 243707 HSCU50014H
inventory mark
$28.38
TIP07F 291573 TIP07F
inventory mark
$7.61
TPS25-1 291590 TPS25-1
inventory mark
$3.36
MK1KS 291805 MK1KS
inventory mark
$4.79
