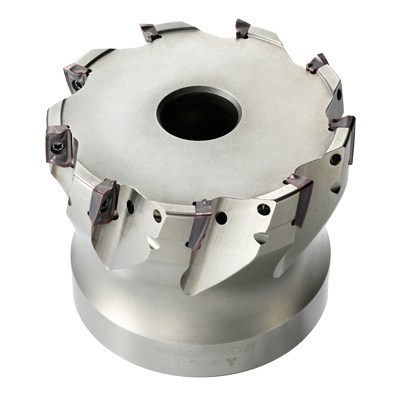

APX3000R0309B
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

351564

ANSI

APX3000R0309B

ISO

APX3000R0309B

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

Stock
4

Price
$1,033.53 USD
$1,033.53 USD
Sale

EDP

351564

ANSI

APX3000R0309B

ISO

APX3000R0309B

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions

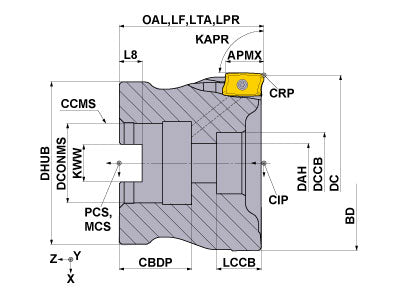

  • Drawings
APX3000R0309B
Coolant
Internal
Hand
Right

Unit: mm

DC
76.2
LF
50
APMX
10
OAL
50
DCONMS
25.4
DCSFMS
70
NOF
9
ZEFF
9
ZEFP
9
KAPR
90
RMPX
1
GAMF
27
GAMP
22
WT
2.646
APX3000R0309B

Unit: mm

DC
76.2
LF
50
APMX
10
OAL
50
DCONMS
25.4
DCSFMS
70
NOF
9
ZEFF
9
ZEFP
9
KAPR
90
RMPX
1
GAMF
27
GAMP
22
WT
2.646


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS25-1 291590 TPS25-1
inventory mark
$3.36
MK1KS 291805 MK1KS
inventory mark
$4.79
HSCU50014H 243707 HSCU50014H
inventory mark
$28.38
TIP07F 291573 TIP07F
inventory mark
$7.61
