MMT16IR300ISO-S VP15TF
Skip to product information

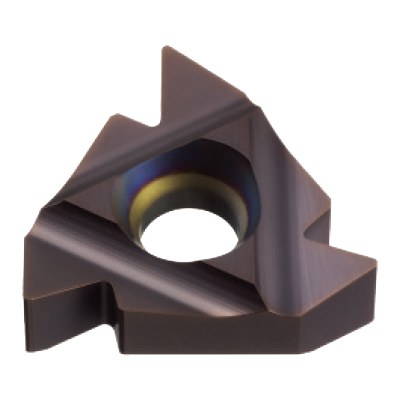

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

370423

ANSI

MMT16IR300ISO-S VP15TF

ISO

MMT16IR300ISO-S VP15TF

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)

5

Regular price $21.35 USD
Regular price Sale price $21.35 USD
Sale

EDP

370423

ANSI

MMT16IR300ISO-S VP15TF

ISO

MMT16IR300ISO-S VP15TF

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant)
View full details
  • Dimensions

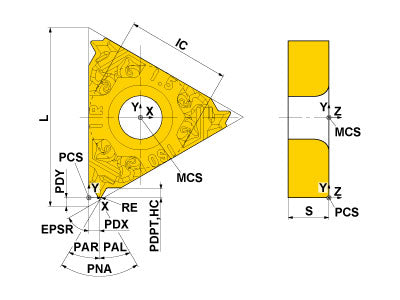

  • Drawings
  • Technical Information
MMT16IR300ISO-S VP15TF
Hand
Right

Unit: mm

IC
9.525
PNA
60
S
3.44
PDX
1.5
PDY
1.1
RE
0.2
L
16.5
EPSR
60
MMT16IR300ISO-S VP15TF

Unit: mm

IC
9.525
PNA
60
S
3.44
PDX
1.5
PDY
1.1
RE
0.2
L
16.5
EPSR
60
