DCRNL-124
print open mailer

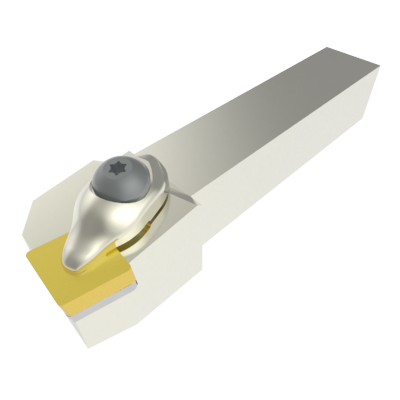

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

371119

ANSI

DCRNL-124

ISO

DCRNL-124

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

Stock
7

Price
$143.57 USD
$143.57 USD
Sale

EDP

371119

ANSI

DCRNL-124

ISO

DCRNL-124

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

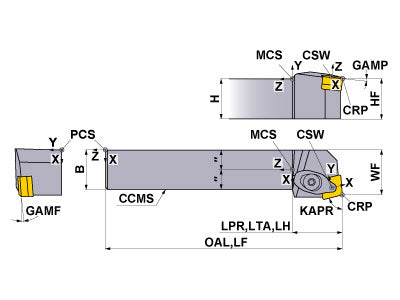

  • Drawings
  • Technical Information
DCRNL-124
Coolant
External
Hand
Left

Unit: mm

H
19.05
B
19.05
LF
114.3
LH
31.75
HF
19.05
WF
22.55
GAMF
6
GAMP
-6
KAPR
75
DCRNL-124

Unit: mm

H
19.05
B
19.05
LF
114.3
LH
31.75
HF
19.05
WF
22.55
GAMF
6
GAMP
-6
KAPR
75


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
DC0621T 388560 DC0621T
inventory mark
$14.81
DCS1 151511 DCS1
inventory mark
$2.70
DCK2613 389052 DCK2613
inventory mark
$20.65
LLP14 102688 LLP14
inventory mark
$1.61
LLSCN42 102693 LLSCN42
inventory mark
$10.77
TKY20F 106904 TKY20F
inventory mark
$7.77
