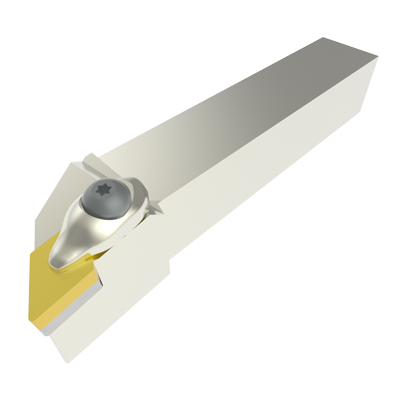

The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
EDP
371151
ANSI
DDJNL-124
ISO
DDJNL-124
Stock
4
Price
Regular price
$134.27 USD
Regular price
Sale price
$134.27 USD
Unit price
/
per
EDP
371151
ANSI
DDJNL-124
ISO
DDJNL-124
Change the number in sums of 1s.
- Dimensions
- Features

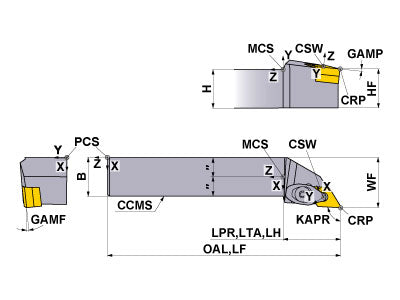

- Drawings
- Technical Information
Coolant
External
Hand
Left
Unit: inch
H
0.75
B
0.75
LF
4.5
LH
1.375
HF
0.75
WF
1
GAMF
6
GAMP
-6
KAPR
93
Unit: inch
H
0.75
B
0.75
LF
4.5
LH
1.375
HF
0.75
WF
1
GAMF
6
GAMP
-6
KAPR
93
New double clamp type.
Holds inserts securely.
Excellent cutting edge tolerance.
Economical negative insert.
Recommended with CBN grade insert.
2D Model (DXF)
3D Model (STP)
Select files to download
