diaedge
DDJNR-124
Skip to product information

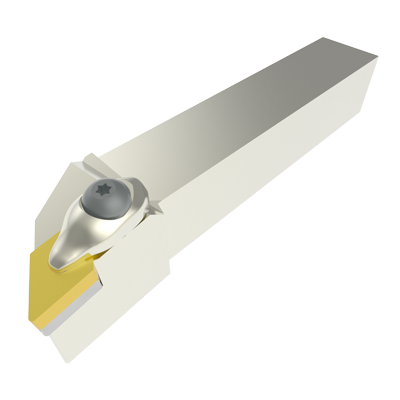

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

371160

ANSI

DDJNR-124

ISO

DDJNR-124

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

38

Regular price $134.27 USD
Regular price Sale price $134.27 USD
Sale

EDP

371160

ANSI

DDJNR-124

ISO

DDJNR-124

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

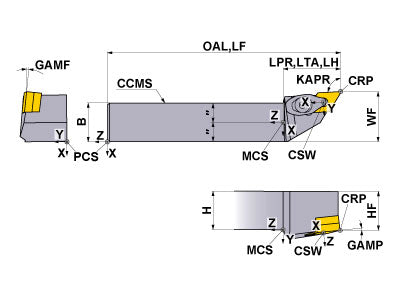

  • Drawings
  • Technical Information
DDJNR-124
Coolant
External
Hand
Right

Unit: inch

H
0.75
B
0.75
LF
4.5
LH
1.375
HF
0.75
WF
1
GAMF
6
GAMP
-6
KAPR
93
DDJNR-124

Unit: inch

H
0.75
B
0.75
LF
4.5
LH
1.375
HF
0.75
WF
1
GAMF
6
GAMP
-6
KAPR
93
