diaedge

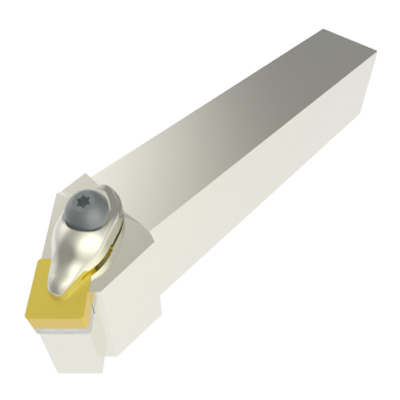

DSSNL-124
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

371207

ANSI

DSSNL-124

ISO

DSSNL-124

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

13

Regular price $117.33 USD
Regular price Sale price $117.33 USD
Sale

EDP

371207

ANSI

DSSNL-124

ISO

DSSNL-124

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

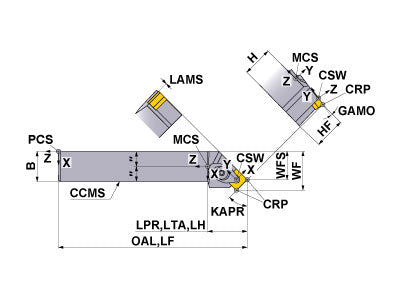

  • Drawings
  • Technical Information
DSSNL-124
Coolant
External
Hand
Left

Unit: inch

H
0.75
B
0.75
LF
4.5
LH
1.25
HF
0.75
WF
1
GAMF
6
GAMP
-6
GAMO
6
LAMS
6
KAPR
45
DSSNL-124

Unit: inch

H
0.75
B
0.75
LF
4.5
LH
1.25
HF
0.75
WF
1
GAMF
6
GAMP
-6
GAMO
6
LAMS
6
KAPR
45
