diaedge
DVJNL-123
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

371266

ANSI

DVJNL-123

ISO

DVJNL-123

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

8

Regular price $181.57 USD
Regular price Sale price $181.57 USD
Sale

EDP

371266

ANSI

DVJNL-123

ISO

DVJNL-123

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

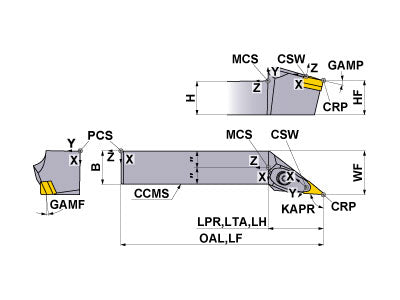

  • Drawings
  • Technical Information
DVJNL-123
Coolant
External
Hand
Left

Unit: inch

H
0.75
B
0.75
LF
4.5
LH
1.625
HF
0.75
WF
1
GAMF
6
GAMP
-13
KAPR
93
DVJNL-123

Unit: inch

H
0.75
B
0.75
LF
4.5
LH
1.625
HF
0.75
WF
1
GAMF
6
GAMP
-13
KAPR
93
