EDP

371645

ANSI

DWLNL-164

ISO

DWLNL-164

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

38

Regular price $131.36 USD
Regular price Sale price $131.36 USD
Sale

EDP

371645

ANSI

DWLNL-164

ISO

DWLNL-164

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

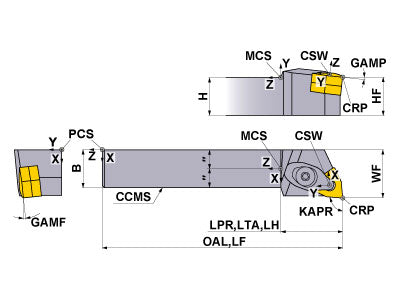

  • Drawings
  • Technical Information
DWLNL-164
Coolant
External
Hand
Left

Unit: inch

H
1.0
B
1.0
LF
6.0
LH
1.25
HF
1
WF
1.25
GAMF
6
GAMP
-6
KAPR
95
DWLNL-164

Unit: inch

H
1.0
B
1.0
LF
6.0
LH
1.25
HF
1
WF
1.25
GAMF
6
GAMP
-6
KAPR
95
