diaedge
DCLNL-244
print open mailer

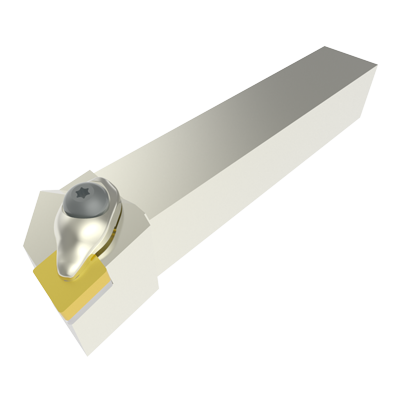

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

371725

ANSI

DCLNL-244

ISO

DCLNL-244

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

Stock
7

Price
$262.67 USD
$262.67 USD
Sale

EDP

371725

ANSI

DCLNL-244

ISO

DCLNL-244

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

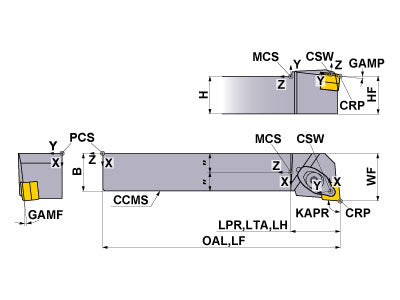

  • Drawings
  • Technical Information
DCLNL-244
Coolant
External
Hand
Left

Unit: inch

H
1.5
B
1.5
LF
6.0
LH
1.25
HF
1.5
WF
2
GAMF
6
GAMP
-6
KAPR
95
DCLNL-244

Unit: inch

H
1.5
B
1.5
LF
6.0
LH
1.25
HF
1.5
WF
2
GAMF
6
GAMP
-6
KAPR
95


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY20F 106904 TKY20F
inventory mark
$4.85
LLSCN42 102693 LLSCN42
inventory mark
$8.07
DCS1 151511 DCS1
inventory mark
$1.67
DC0621T 388560 DC0621T
inventory mark
$9.80
DCK2613 389052 DCK2613
inventory mark
$16.87
LLP14 102688 LLP14
inventory mark
$1.00
