The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
1
/
of
2
EDP
379487
ANSI
VF-2XLB/1RX8X6
ISO
VF2XLBR0100N080S06
![H (Hard material)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-H.png?v=152662001445288260811700003448)
Stock
1
Price
Regular price
$67.20 USD
Regular price
Sale price
$67.20 USD
Unit price
/
per
EDP
379487
ANSI
VF-2XLB/1RX8X6
ISO
VF2XLBR0100N080S06
![H (Hard material)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-H.png?v=152662001445288260811700003448)
Change the number in sums of 1s.
Couldn't load pickup availability
![VF2XLBR0100N080S06](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF2XLB_MMSS_109da9d0-610f-484d-b4fd-e5506b47294a.png?v=1725698875&width=1445)
![VF2XLBR0100N080S06](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF2XLB_MMSS_1_f53cc3cb-f5e2-4c79-b1c2-8bdf109e49d9.jpg?v=1725698875&width=1445)
- Dimensions
- Features

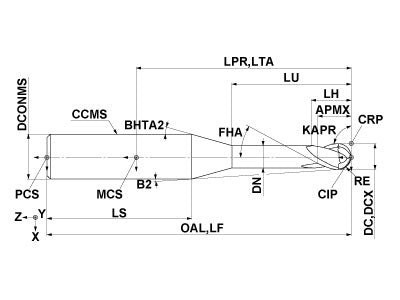

- Drawings
- Technical Information
![VF2XLBR0100N080S06](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF2XLB_MMSS_1_f53cc3cb-f5e2-4c79-b1c2-8bdf109e49d9.jpg?v=1725698875&width=416)
Coolant
External
Hand
Right
Unit: mm
DC
2
APMX
1.6
LU
8
LH
1.65
OAL
50
DN
1.9
DCONMS
6
BHTA2
12
RE
1
FHA
30
ZEFP
2
ZEFF
2
![VF2XLBR0100N080S06](http://mmusec.mmc-carbide.com/cdn/shop/files/MILBNSS_MI_VF2XLB_MMSS_1_f53cc3cb-f5e2-4c79-b1c2-8bdf109e49d9.jpg?v=1725698875&width=416)
Unit: mm
DC
2
APMX
1.6
LU
8
LH
1.65
OAL
50
DN
1.9
DCONMS
6
BHTA2
12
RE
1
FHA
30
ZEFP
2
ZEFF
2

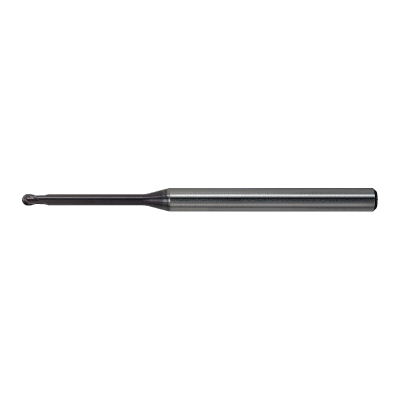

2 flute long neck ball nose end mills with Impact Miracle coating for high hardness materials.
2D Model (DXF)
3D Model (STP)
Select files to download
