VF2XLBR0300N300S06
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

379815

ANSI

VF-2XLB/3RX30X6

ISO

VF2XLBR0300N300S06

H (Hard material)

119

Regular price $93.13 USD
Regular price Sale price $93.13 USD
Sale

EDP

379815

ANSI

VF-2XLB/3RX30X6

ISO

VF2XLBR0300N300S06

H (Hard material)
View full details
  • Dimensions
  • Features

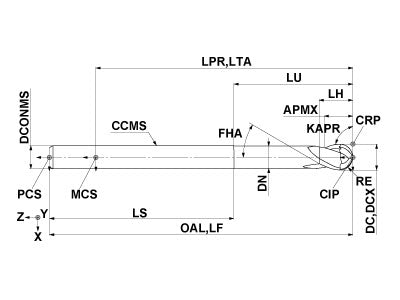

  • Drawings
  • Technical Information
VF2XLBR0300N300S06
Coolant
External
Hand
Right

Unit: mm

DC
6
APMX
4.8
LU
30
LH
4.88
OAL
80
DN
5.85
DCONMS
6
RE
3
FHA
30
ZEFP
2
ZEFF
2
VF2XLBR0300N300S06

Unit: mm

DC
6
APMX
4.8
LU
30
LH
4.88
OAL
80
DN
5.85
DCONMS
6
RE
3
FHA
30
ZEFP
2
ZEFF
2
