diaedge
VFSDD0100
Skip to product information

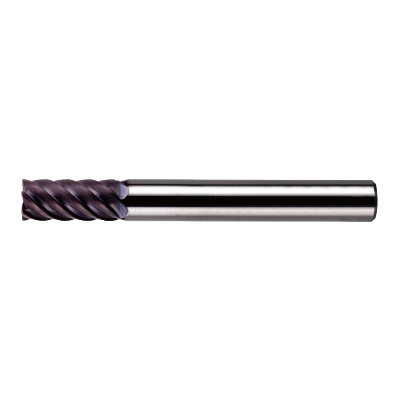

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

379823

ANSI

VF-SD/1

ISO

VFSDD0100

H (Hard material)

72

Regular price $44.23 USD
Regular price Sale price $44.23 USD
Sale

EDP

379823

ANSI

VF-SD/1

ISO

VFSDD0100

H (Hard material)
View full details
  • Dimensions
  • Features

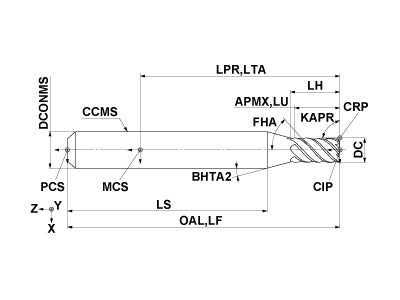

  • Drawings
  • Technical Information
VFSDD0100
Coolant
External
Hand
Right

Unit: mm

DC
1
APMX
2
LU
2
LH
2.4
OAL
45
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
VFSDD0100

Unit: mm

DC
1
APMX
2
LU
2
LH
2.4
OAL
45
DCONMS
6
BHTA2
15
FHA
30
ZEFP
4
ZEFF
4
