diaedge
VFSDD0300
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

379866

ANSI

VF-SD/3

ISO

VFSDD0300

H (Hard material)

31

Regular price $51.08 USD
Regular price Sale price $51.08 USD
Sale

EDP

379866

ANSI

VF-SD/3

ISO

VFSDD0300

H (Hard material)
View full details
  • Dimensions
  • Features

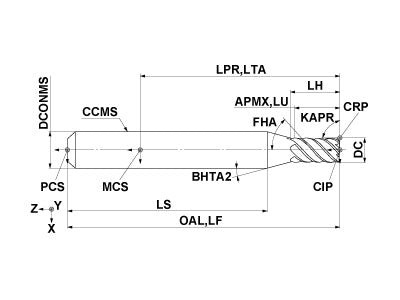

  • Drawings
  • Technical Information
VFSDD0300
Coolant
External
Hand
Right

Unit: mm

DC
3
APMX
6
LU
6
LH
6.9
OAL
45
DCONMS
6
BHTA2
15
FHA
45
ZEFP
6
ZEFF
6
VFSDD0300

Unit: mm

DC
3
APMX
6
LU
6
LH
6.9
OAL
45
DCONMS
6
BHTA2
15
FHA
45
ZEFP
6
ZEFF
6
