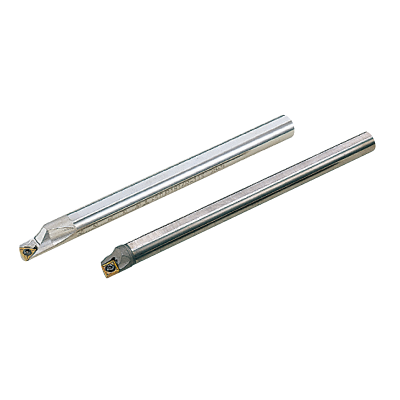

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

382643

ANSI

S-FSCLPR-163-C

ISO

S-FSCLPR-163-C

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)

4

Regular price $342.32 USD
Regular price Sale price $342.32 USD
Sale

EDP

382643

ANSI

S-FSCLPR-163-C

ISO

S-FSCLPR-163-C

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)
View full details
  • Dimensions
  • Features

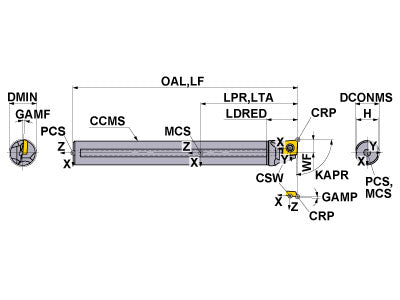

  • Drawings
  • Technical Information
S-FSCLPR-163-C
Coolant
Internal
Hand
Right

Unit: inch

H
0.937
DCONMS
1.0
LF
12
WF
0.598
LDRED
2.25
GAMF
0
GAMP
5
DMIN
1.2
KAPR
95
S-FSCLPR-163-C

Unit: inch

H
0.937
DCONMS
1.0
LF
12
WF
0.598
LDRED
2.25
GAMF
0
GAMP
5
DMIN
1.2
KAPR
95

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15F 106901 TKY15F
inventory mark
$4.03
TS4D 236777 TS4D
inventory mark
$2.74
