EDP

382660

ANSI

S-FSTUPR-061.8-C

ISO

S-FSTUPR-061.8-C

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)

28

Regular price $179.31 USD
Regular price Sale price $179.31 USD
Sale

EDP

382660

ANSI

S-FSTUPR-061.8-C

ISO

S-FSTUPR-061.8-C

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)
View full details
  • Dimensions
  • Features

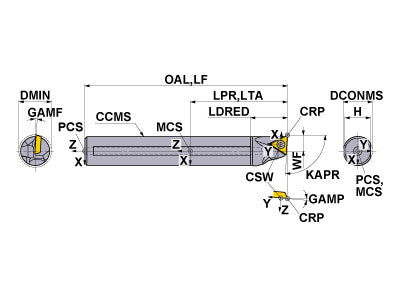

  • Drawings
  • Technical Information
S-FSTUPR-061.8-C
Coolant
Internal
Hand
Right

Unit: inch

H
0.336
DCONMS
0.375
LF
6
WF
0.227
LDRED
0.844
GAMF
8
GAMP
5
DMIN
0.45
KAPR
93
S-FSTUPR-061.8-C

Unit: inch

H
0.336
DCONMS
0.375
LF
6
WF
0.227
LDRED
0.844
GAMF
8
GAMP
5
DMIN
0.45
KAPR
93

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY08F 106896 TKY08F
inventory mark
$3.37
TS25D 238924 TS25D
inventory mark
$2.74
