MWS00310LB VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

388720

ANSI

MWS00310LB VP15TF

ISO

MWS00310LB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

86

Regular price $141.26 USD
Regular price Sale price $141.26 USD
Sale

EDP

388720

ANSI

MWS00310LB VP15TF

ISO

MWS00310LB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

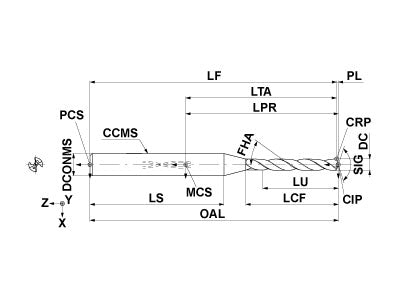

  • Drawings
  • Technical Information
MWS00310LB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.031
ULDR
5.0
LU
0.161
LCF
0.4
OAL
1.975
DCONMS
0.125
PL
0.006
SIG
135
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
MWS00310LB VP15TF

Unit: inch

DC
0.031
ULDR
5.0
LU
0.161
LCF
0.4
OAL
1.975
DCONMS
0.125
PL
0.006
SIG
135
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
