EDP

388746

ANSI

MWS00320LB VP15TF

ISO

MWS00320LB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

91

Regular price $130.80 USD
Regular price Sale price $130.80 USD
Sale

EDP

388746

ANSI

MWS00320LB VP15TF

ISO

MWS00320LB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

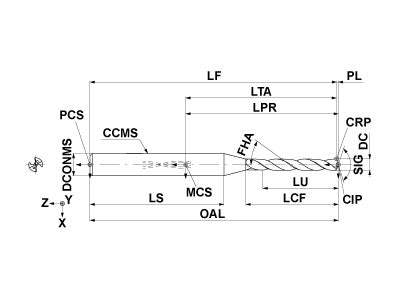

  • Drawings
  • Technical Information
MWS00320LB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.032
ULDR
5.0
LU
0.167
LCF
0.4
OAL
1.975
DCONMS
0.125
PL
0.007
SIG
135
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
MWS00320LB VP15TF

Unit: inch

DC
0.032
ULDR
5.0
LU
0.167
LCF
0.4
OAL
1.975
DCONMS
0.125
PL
0.007
SIG
135
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
