EDP

388842

ANSI

MWS00240XB VP15TF

ISO

MWS00240XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

46

Regular price $183.62 USD
Regular price Sale price $183.62 USD
Sale

EDP

388842

ANSI

MWS00240XB VP15TF

ISO

MWS00240XB VP15TF

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

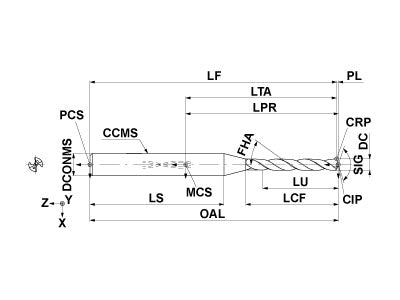

  • Drawings
  • Technical Information
MWS00240XB VP15TF
Coolant
Internal
Hand
Right

Unit: inch

DC
0.024
ULDR
12.0
LU
0.293
LCF
0.635
OAL
1.855
DCONMS
0.125
PL
0.005
SIG
135
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
MWS00240XB VP15TF

Unit: inch

DC
0.024
ULDR
12.0
LU
0.293
LCF
0.635
OAL
1.855
DCONMS
0.125
PL
0.005
SIG
135
FHA
25
DC Max
0.0004
DC Min
0
TCDCON
h6
ZEFF
2
