diaedge
AJX14RA16008F
Skip to product information

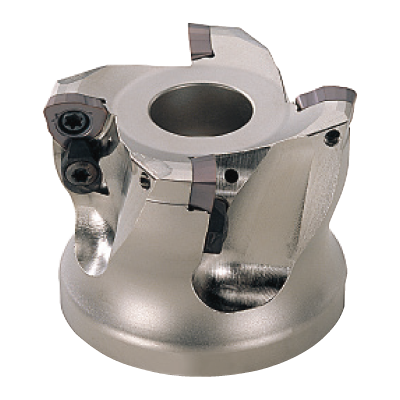

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

418001

ANSI

AJX14RA16008F

ISO

AJX14RA16008F

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

11

Regular price $1,248.40 USD
Regular price Sale price $1,248.40 USD
Sale

EDP

418001

ANSI

AJX14RA16008F

ISO

AJX14RA16008F

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

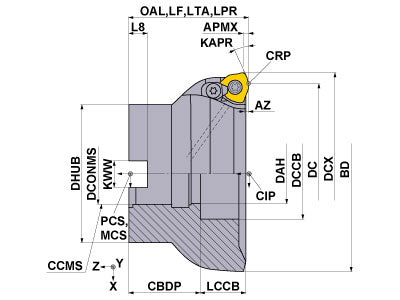

  • Drawings
  • Technical Information
AJX14RA16008F
Coolant
Internal
Hand
Right

Unit: inch

DC
5.835
DCX
6.299
LF
2.48
APMX
0.079
OAL
2.48
DCONMS
2
NOF
8
ZEFF
8
ZEFP
8
KAPR
22
RMPX
0.5
GAMF
-5
GAMP
8
WT
11.5
AJX14RA16008F

Unit: inch

DC
5.835
DCX
6.299
LF
2.48
APMX
0.079
OAL
2.48
DCONMS
2
NOF
8
ZEFF
8
ZEFP
8
KAPR
22
RMPX
0.5
GAMF
-5
GAMP
8
WT
11.5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS54 135001 TS54
inventory mark
$3.62
AMS5 100092 AMS5
inventory mark
$8.92
ASS3 100112 ASS3
inventory mark
$0.73
MBAU100016H 418028 MBAU100016H
inventory mark
$160.51
TKY25T 106908 TKY25T
inventory mark
$4.03
AJS5014T25 242296 AJS5014T25
inventory mark
$2.74
