diaedge
AJXU09R244SA20M
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

428200

ANSI

AJXU09R244SA20M

ISO

AJXU09R244SA20M

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

34

Regular price $638.01 USD
Regular price Sale price $638.01 USD
Sale

EDP

428200

ANSI

AJXU09R244SA20M

ISO

AJXU09R244SA20M

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

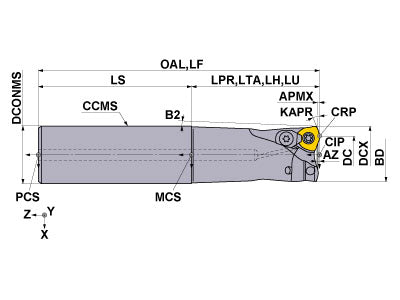

  • Drawings
  • Technical Information
AJXU09R244SA20M
Coolant
Internal
Hand
Right

Unit: inch

DC
1.114
DCX
1.5
LF
10
APMX
0.079
LH
2.375
OAL
10
DCONMS
1.25
NOF
4
ZEFF
4
ZEFP
4
RMPX
2.4
GAMF
-5
GAMP
5
AJXU09R244SA20M

Unit: inch

DC
1.114
DCX
1.5
LF
10
APMX
0.079
LH
2.375
OAL
10
DCONMS
1.25
NOF
4
ZEFF
4
ZEFP
4
RMPX
2.4
GAMF
-5
GAMP
5

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
ASS2 242253 ASS2
inventory mark
$0.73
TS351 242237 TS351
inventory mark
$2.74
TKY10D 242261 TKY10D
inventory mark
$14.00
AMS3 242245 AMS3
inventory mark
$8.79
AJS3010T10 242270 AJS3010T10
inventory mark
$2.74
