AJXU09R0205
Skip to product information

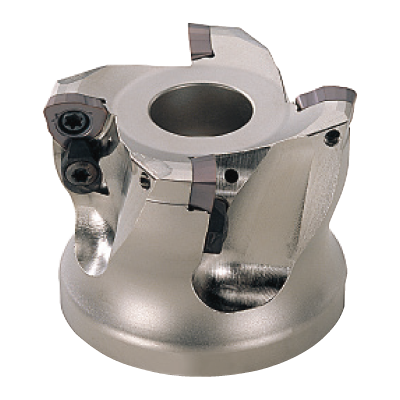

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

428218

ANSI

AJXU09R0205

ISO

AJXU09R0205

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

180

Regular price $605.82 USD
Regular price Sale price $605.82 USD
Sale

EDP

428218

ANSI

AJXU09R0205

ISO

AJXU09R0205

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

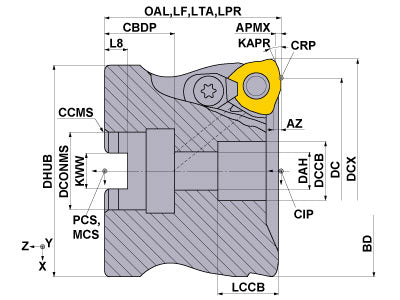

  • Drawings
  • Technical Information
AJXU09R0205
Coolant
Internal
Hand
Right

Unit: inch

DC
1.606
DCX
2
LF
2
APMX
0.079
OAL
2
DCONMS
0.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
23.5
RMPX
1.1
GAMF
-6
GAMP
8
WT
1.2
AJXU09R0205

Unit: inch

DC
1.606
DCX
2
LF
2
APMX
0.079
OAL
2
DCONMS
0.75
NOF
5
ZEFF
5
ZEFP
5
KAPR
23.5
RMPX
1.1
GAMF
-6
GAMP
8
WT
1.2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY10D 242261 TKY10D
inventory mark
$14.00
AJS3010T10 242270 AJS3010T10
inventory mark
$2.74
ASS2 242253 ASS2
inventory mark
$0.73
TS351 242237 TS351
inventory mark
$2.74
AMS3 242245 AMS3
inventory mark
$8.79
HSCU37513H 242835 HSCU37513H
inventory mark
$19.06
