diaedge

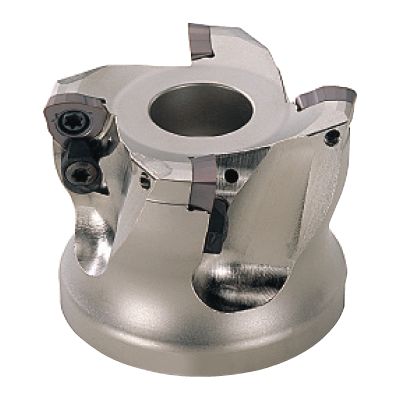

AJXU12R2505C
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

428226

ANSI

AJXU12R2505C

ISO

AJXU12R2505C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)

23

Regular price $692.39 USD
Regular price Sale price $692.39 USD
Sale

EDP

428226

ANSI

AJXU12R2505C

ISO

AJXU12R2505C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

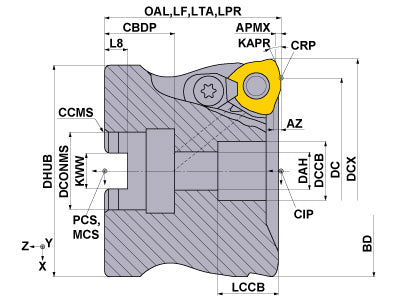

  • Drawings
  • Technical Information
AJXU12R2505C
Coolant
Internal
Hand
Right

Unit: inch

DC
2.039
DCX
2.5
LF
2
APMX
0.079
OAL
2
DCONMS
1
NOF
5
ZEFF
5
ZEFP
5
KAPR
22
RMPX
1.5
GAMF
-5
GAMP
8
WT
1.9
AJXU12R2505C

Unit: inch

DC
2.039
DCX
2.5
LF
2
APMX
0.079
OAL
2
DCONMS
1
NOF
5
ZEFF
5
ZEFP
5
KAPR
22
RMPX
1.5
GAMF
-5
GAMP
8
WT
1.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
AJS4012T15 242288 AJS4012T15
inventory mark
$2.74
HSCU50014H 243707 HSCU50014H
inventory mark
$25.51
TKY15T 106903 TKY15T
inventory mark
$4.52
ASS2 242253 ASS2
inventory mark
$0.73
TS43 108744 TS43
inventory mark
$2.74
AMS4 100091 AMS4
inventory mark
$8.92
