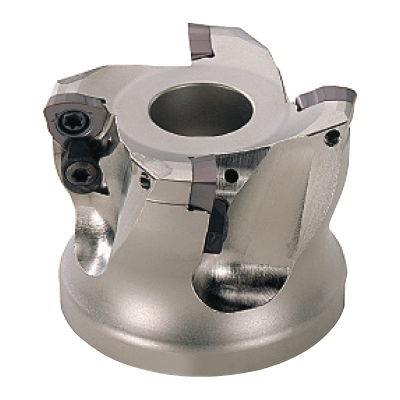

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

428234

ANSI

AJXU12R0306C

ISO

AJXU12R0306C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

41

Regular price $839.48 USD
Regular price Sale price $839.48 USD
Sale

EDP

428234

ANSI

AJXU12R0306C

ISO

AJXU12R0306C

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

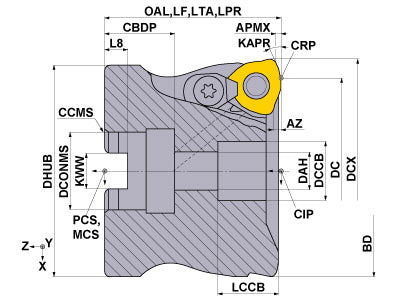

  • Drawings
  • Technical Information
AJXU12R0306C
Coolant
Internal
Hand
Right

Unit: inch

DC
2.543
DCX
3
LF
2
APMX
0.079
OAL
2
DCONMS
1
DCSFMS
2.75
NOF
6
ZEFF
6
ZEFP
6
KAPR
22
RMPX
1.2
GAMF
-7
GAMP
7
WT
2.756
AJXU12R0306C

Unit: inch

DC
2.543
DCX
3
LF
2
APMX
0.079
OAL
2
DCONMS
1
DCSFMS
2.75
NOF
6
ZEFF
6
ZEFP
6
KAPR
22
RMPX
1.2
GAMF
-7
GAMP
7
WT
2.756

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TS43 108744 TS43
inventory mark
$2.96
ASS2 242253 ASS2
inventory mark
$0.79
AMS4 100091 AMS4
inventory mark
$9.63
TKY15T 106903 TKY15T
inventory mark
$4.96
AJS4012T15 242288 AJS4012T15
inventory mark
$2.96
HSCU50014H 243707 HSCU50014H
inventory mark
$27.55
