diaedge

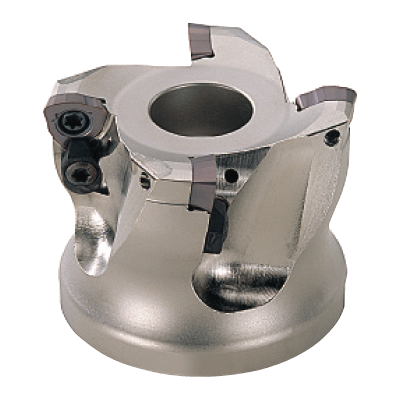

AJXU12R0407E
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

428242

ANSI

AJXU12R0407E

ISO

AJXU12R0407E

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical

23

Regular price $955.42 USD
Regular price Sale price $955.42 USD
Sale

EDP

428242

ANSI

AJXU12R0407E

ISO

AJXU12R0407E

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
Accuracy_roughing Application_Face milling Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

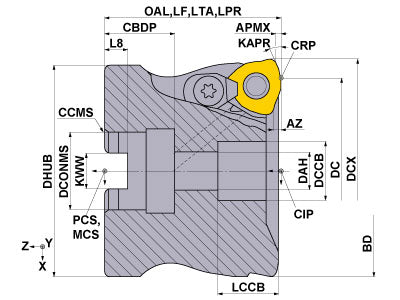

  • Drawings
  • Technical Information
AJXU12R0407E
Coolant
Internal
Hand
Right

Unit: inch

DC
3.539
DCX
4
LF
2.5
APMX
0.079
OAL
2.5
DCONMS
1.5
DCSFMS
3.75
NOF
7
ZEFF
7
ZEFP
7
KAPR
22
RMPX
0.8
GAMF
-5
GAMP
8
WT
6.2
AJXU12R0407E

Unit: inch

DC
3.539
DCX
4
LF
2.5
APMX
0.079
OAL
2.5
DCONMS
1.5
DCSFMS
3.75
NOF
7
ZEFF
7
ZEFP
7
KAPR
22
RMPX
0.8
GAMF
-5
GAMP
8
WT
6.2

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
HSCU75016H 243715 HSCU75016H
inventory mark
$34.31
AJS4012T15 242288 AJS4012T15
inventory mark
$2.96
TS43 108744 TS43
inventory mark
$2.96
AMS4 100091 AMS4
inventory mark
$9.63
TKY15T 106903 TKY15T
inventory mark
$4.96
ASS2 242253 ASS2
inventory mark
$0.79
