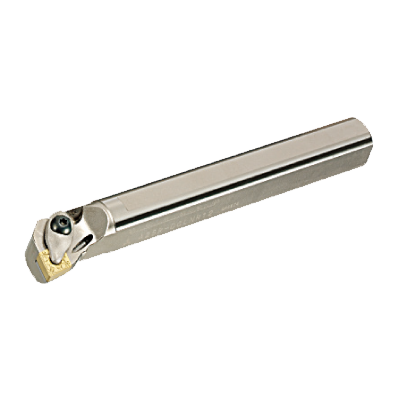

S-DCLNR-324-C
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

429579

ANSI

S-DCLNR-324-C

ISO

S-DCLNR-324-C

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

Stock
26

Price
$782.16 USD
$782.16 USD
Sale

EDP

429579

ANSI

S-DCLNR-324-C

ISO

S-DCLNR-324-C

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
S-DCLNR-324-C
Coolant
Internal
Hand
Right

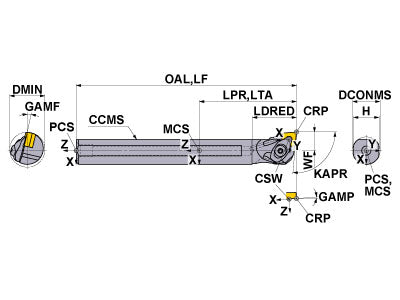

Unit: mm

H
47.8
DCONMS
50.8
LF
355.6
WF
32.54
LDRED
63.5
GAMF
10
GAMP
-6
DMIN
65.075
KAPR
95
S-DCLNR-324-C

Unit: mm

H
47.8
DCONMS
50.8
LF
355.6
WF
32.54
LDRED
63.5
GAMF
10
GAMP
-6
DMIN
65.075
KAPR
95


Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
LLSCN42 102693 LLSCN42
inventory mark
$10.77
DCK2613 389052 DCK2613
inventory mark
$20.65
DCS1 151511 DCS1
inventory mark
$2.70
TKY20F 106904 TKY20F
inventory mark
$7.77
LLP14 102688 LLP14
inventory mark
$1.61
DC0621T 388560 DC0621T
inventory mark
$14.81
